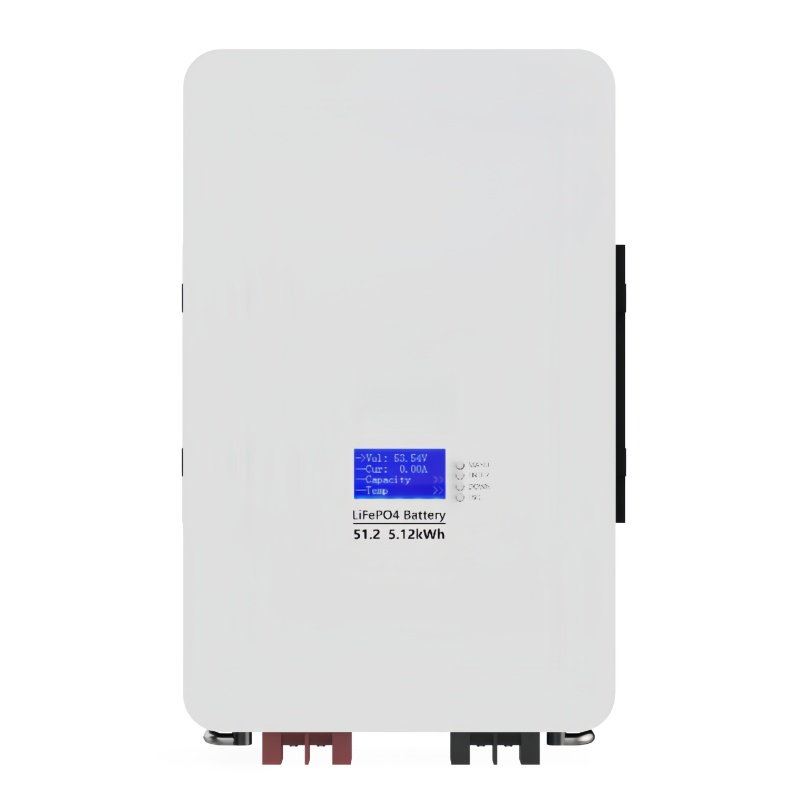

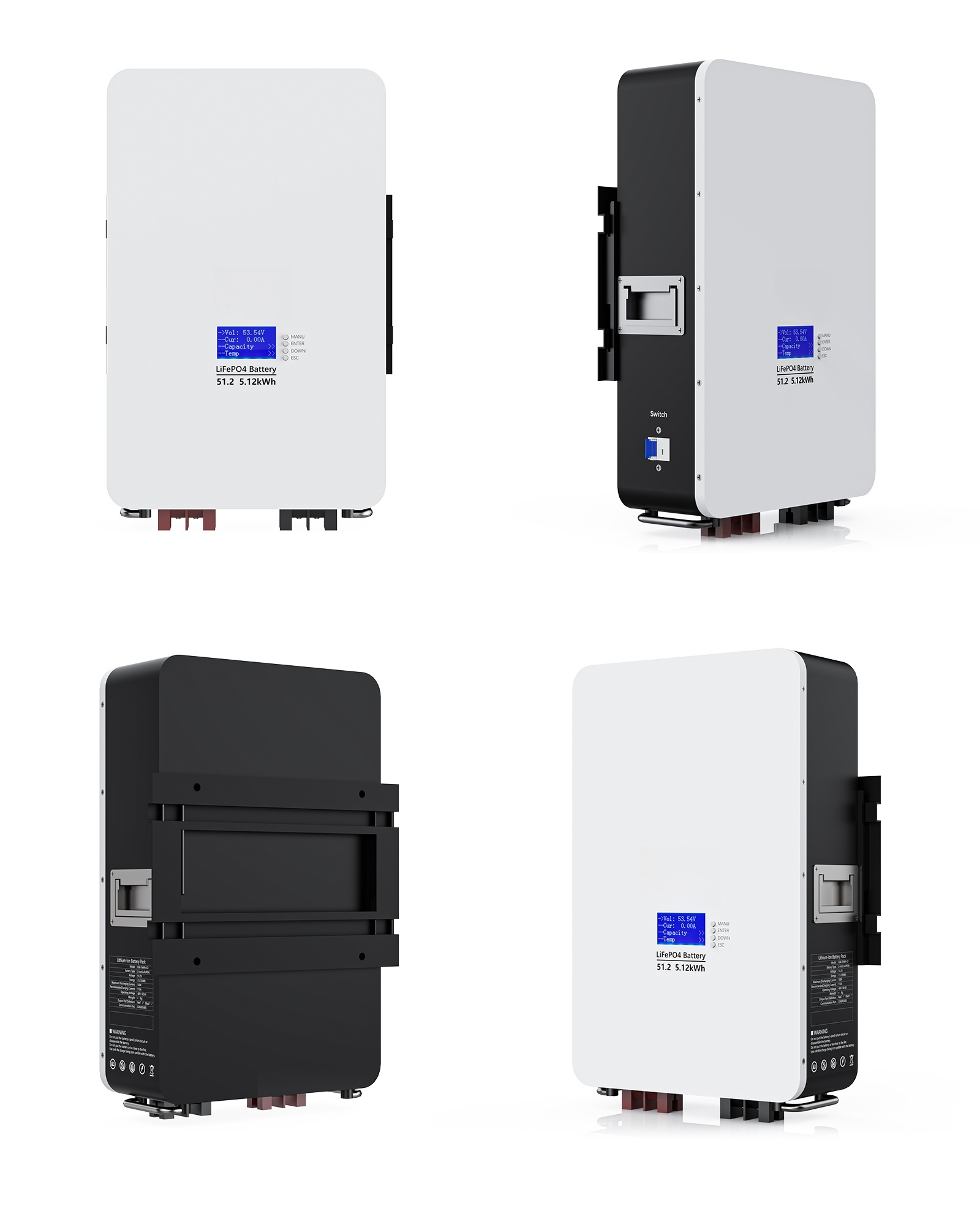

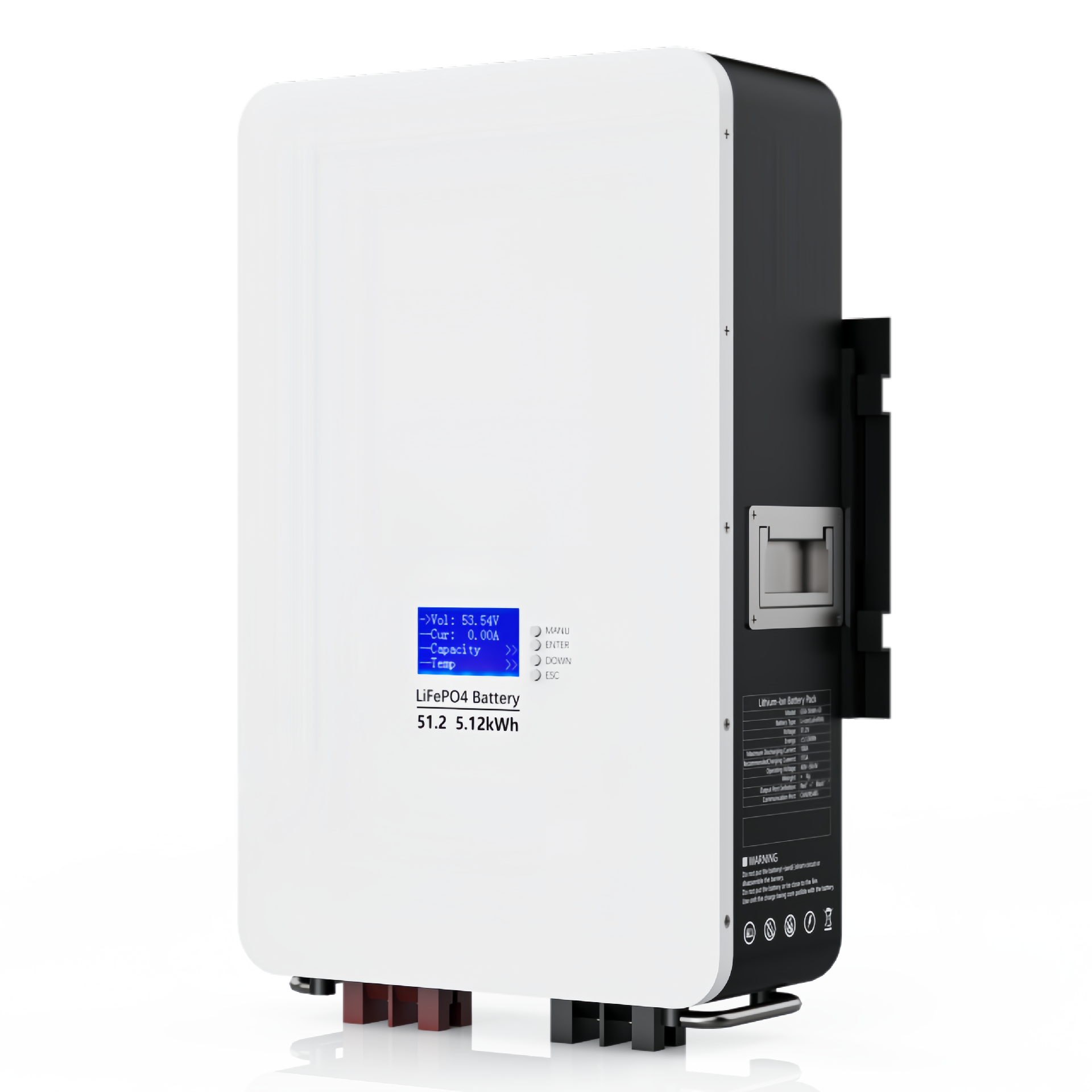

5.12KWh energy storage battery

15

Rated Voltage:

Maximum Inverter Efficiency:

Rated Power:

Peak Powe:

Out Current:

Inverter Output:

Output Frequency:

Output waveform:

Technical Specifications
Rated capacity	100Ah
Rated voltage	51.2V
Rated Energy	5.12kWh
Operating voltage range	40V-58.4V
Standard charge and discharge current	50A/75A
Maximum continuous charging current	100A
Maximum continuous discharge current	100A
Recommended SOC usage scope	5％~95％
Charging operating temperature	0℃~50℃
Discharge operating temperature	-20℃~50℃
Short-term storage stability (within one month)	-20℃~45℃
Long-term storage stability (within one year)	0℃~35℃
Storage humidity	5%~90%
Number of cycles	6000+

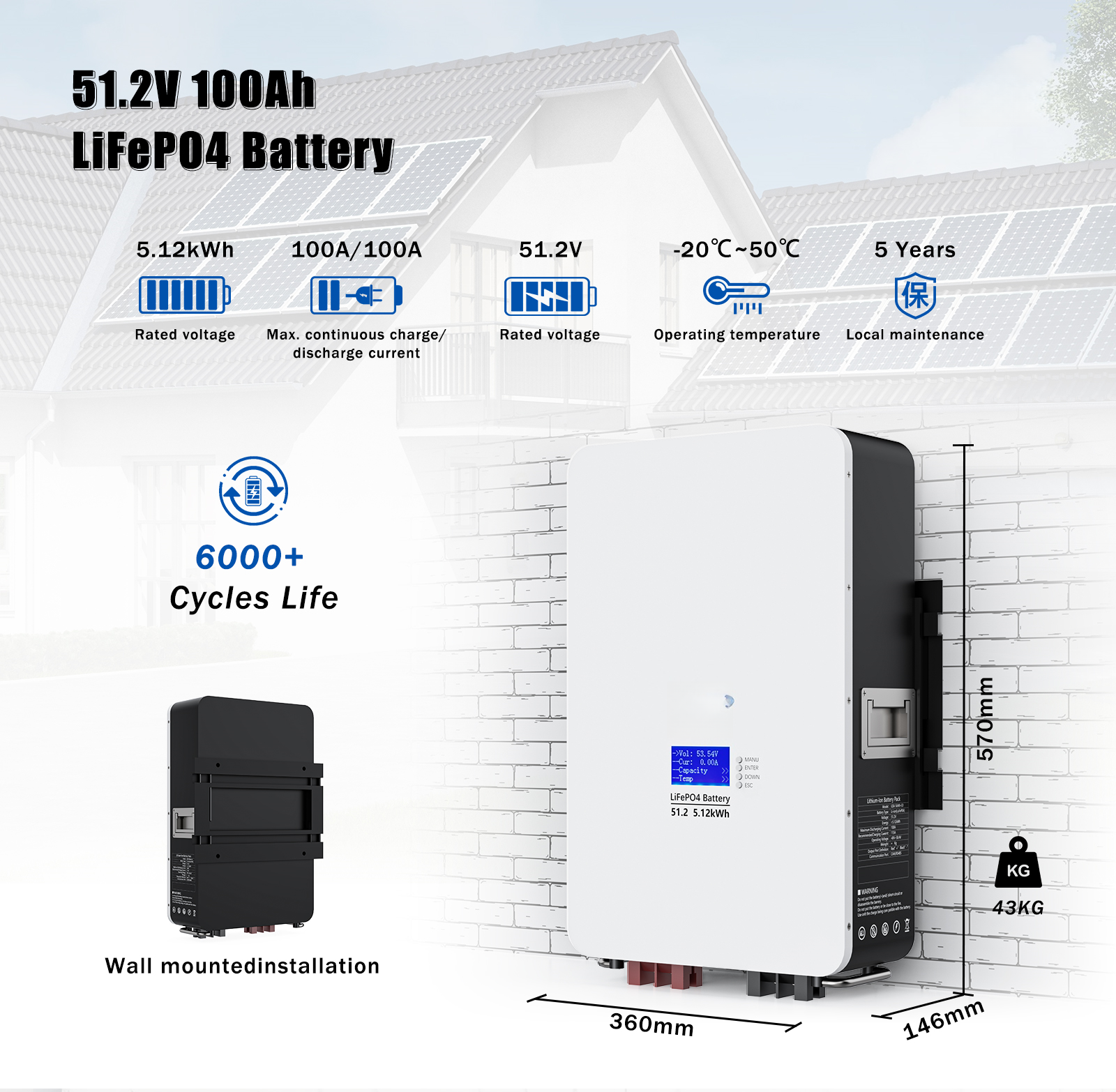

Product size	570360146mm
Net Weight	43Kg
